E 6013 Mild Steel

E 6013 (2)

E 6013

E 6013 Mild Steel

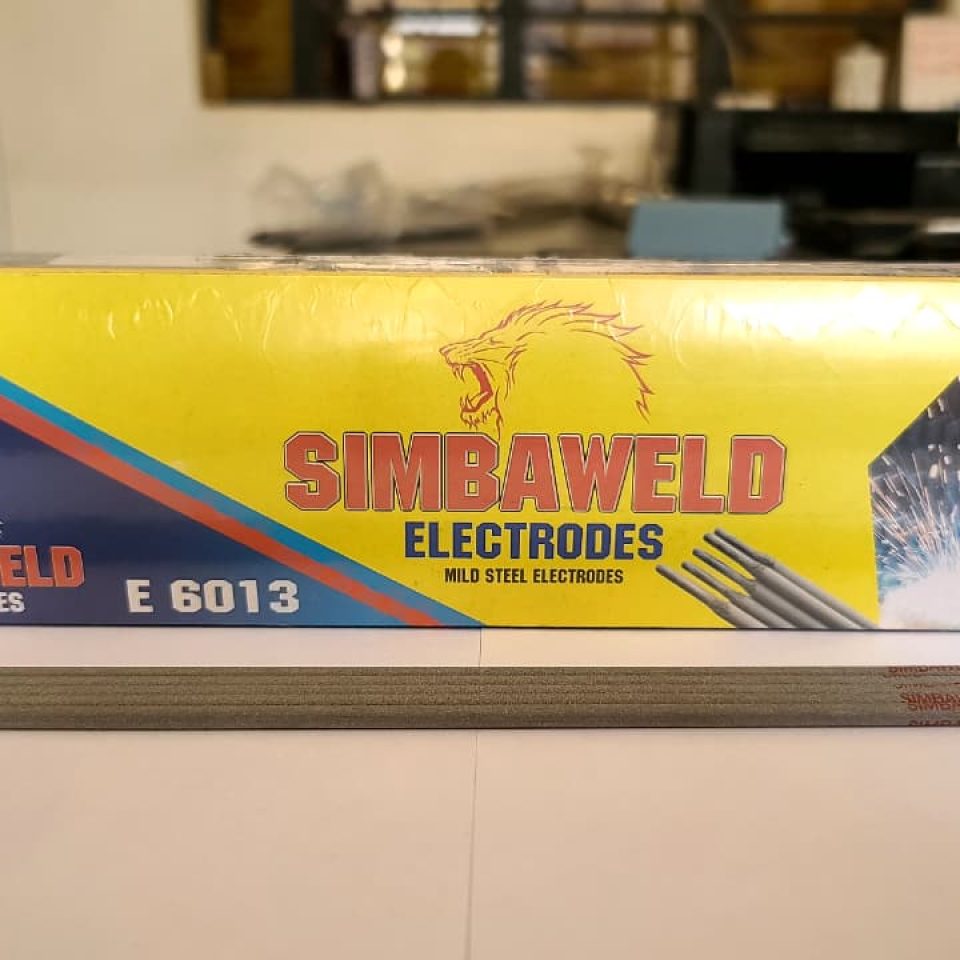

Simbaweld is a Rutile type medium coated, general purpose electrode, suitable for all position including vertical down. It operates very well both on AC and DC (+). The electrode gives smooth and stable arc, low spatter, less smoke, fine ripped bead, good arc striking and restriking, easily detachable slag. It is suitable for welding of all types of mild steel works including welding of Tanks, Vessels, Pipe Lines, Wagons, Bridges, Truck Body Building, Grills etc.

Current Type

AC 50 / DC(+)

Output Voltage

50V (Min)

Sizes Available

2.0 – 5.0mm

DiameterRecommended Amps
2.00mm50 – 75 A
2.50mm70 – 100 A
3.20mm100 – 140 A
4.00mm140 – 190 A
5.00mm190 – 240 A

Product Specifications

PRODUCTSIZEDIAMETERLENGTHAPPLICATIONPACKING
SIMBAWELD E6013 MILD STEEL ELECTRODES2.50MM2.50MM350MMGeneral fabrication, light steel work5 Kg Carton
SIMBAWELD E6013 MILD STEEL ELECTRODES3.20MM3.20MM350MMStructural & general fabrication5 Kg Carton
SIMBAWELD E6013 MILD STEEL ELECTRODES4.00MM4.00MM350MMHeavy fabrication & structural work5 Kg Carton
